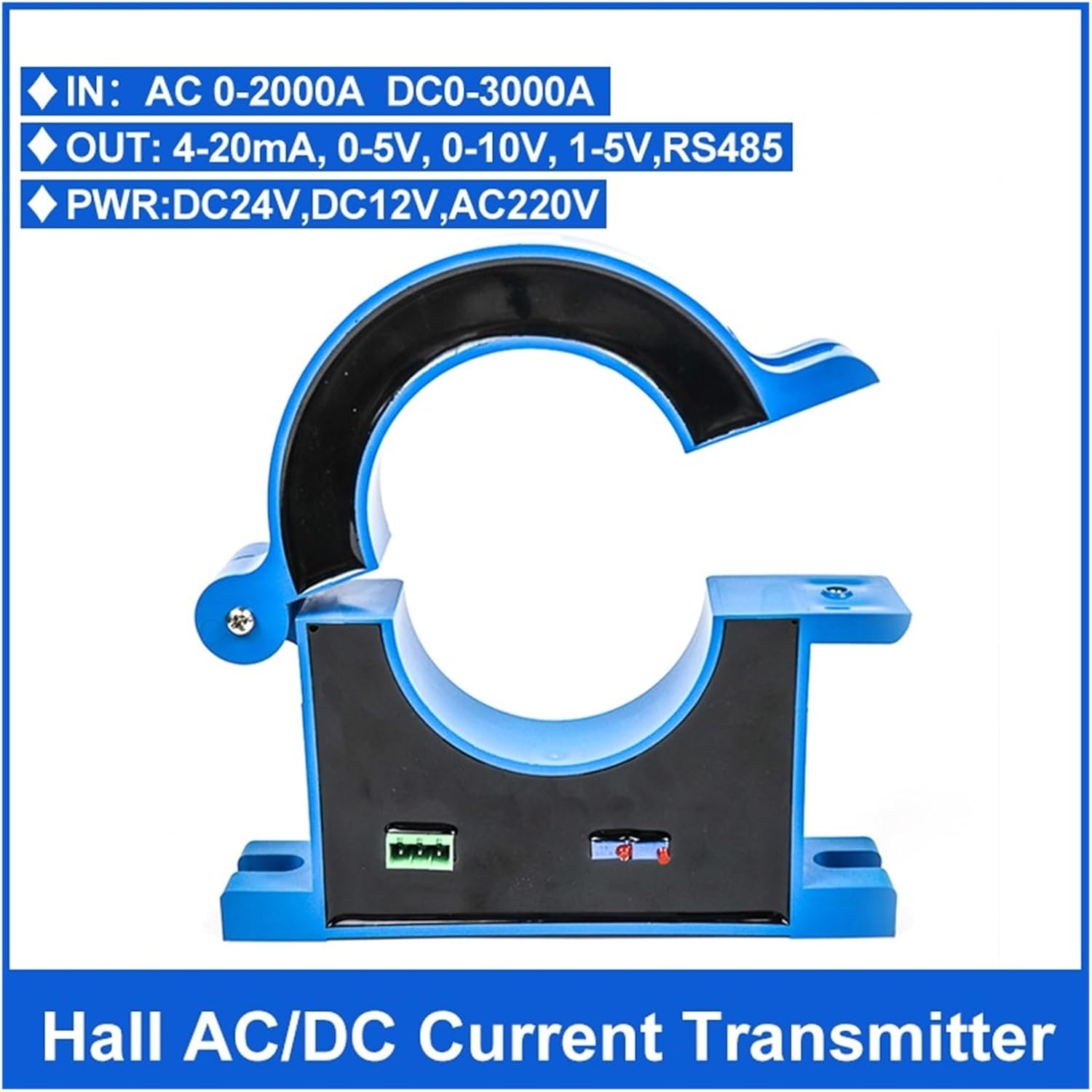

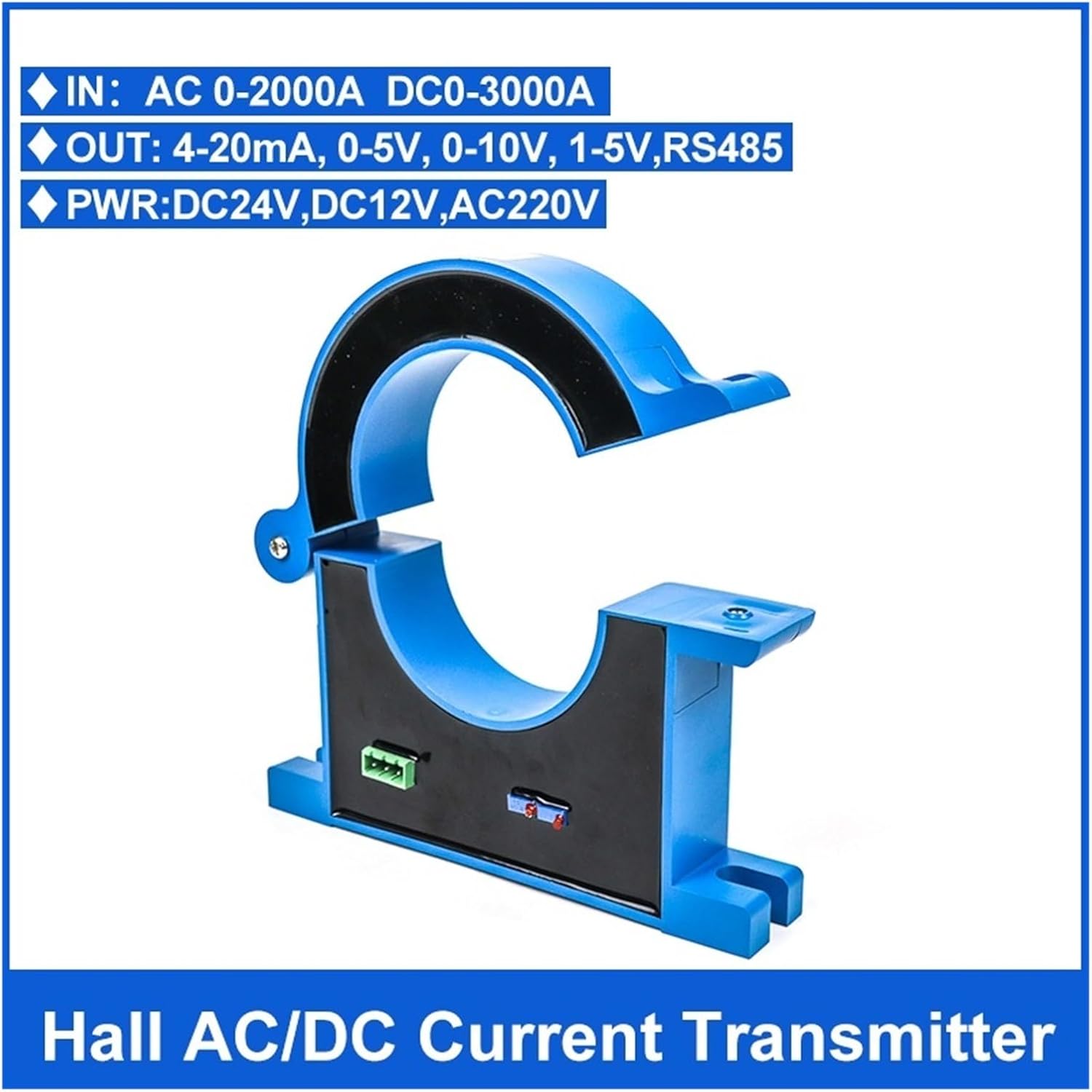

Split Hall Effect AC/DC Current Transmitter Open Loop Current Transducer Sensor 4-20mA Output 0-100A 0-200A 0-500A 0-1000A(4-20ma,0-300A DC-38MM-DC24V)

SensorsBrief description:output（4-20mA / 0-10v / RS485）Working principle: open loop direct testProduct use: used to measure DC AC pulse current and other arbitrary waveform currentProduct advantages: best performance / price ratio power loss small size light weight easy installation perforation input no insertion lossProduct application: frequency control system electric welding machine electrochemistry electric locomotive motor start protectionMainly technical parameters:Product nameKey words 4-20ma current transmitterAccuracy ±0.2%F.SInput signal 0-100A 0-200A 0-500A 0-1000APower DC12V DC24V AC220VInstallation method screwLinearity 0.1%Output load capacity 500Working temperature -20-60

• Sensors
• Compared with other similar products this instrument has the advantages of small size fast response speed low power consumption and good temperature characteristics.
• This instrument can be used in conjunction with modular instruments and DCS PLC and other systems to provide isolation conversion processing and other functions for field instruments thus improving the anti-interference ability of the automatic control system in the industrial production process and ensuring the stability and reliability of the system.
• Easy to install and use no need to connect DC to the circuit when measuring.
• We provide technical support. If you encounter any technical problems please email us we usually reply within 24 hours.
